DIFFCOUNT III

DIGITAL CELL COUNTERS

DIFFCOUNT III digital differential cell counters are designed for use in any laboratory. Our end-users rely on our DIFFCOUNT III line of products in reference labs, hospitals, doctors’ offices, dialysis centers, and veterinary labs around the world.



Handling differential tally counts in the laboratory is simplified using the DIFFCOUNT III to store up to 12 differentials in its memory, making it an essential tool for the modern laboratory.  DIFFCOUNT III is available in 8 or 12-key models. Other models allow communication to a host computer system or ticket printer.  Our differential cell counters have maintained the same familiar ergonomic form factor and use high quality soft-touch keys for optimal technologist usability.

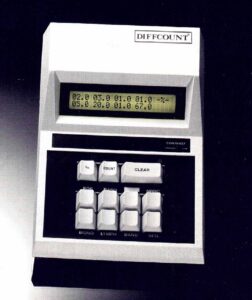

DIFFCOUNT III Model 10-308

8-Channel Cell counter


DIFFCOUNT III 8-Channel digital differential cell counter is designed for the clinical laboratory and features eight counting keys, plus PERCENT, COUNT, and CLEAR keys. DIFFCOUNT III displays information on a bright, backlit LCD display which allows the user to view all channels simultaneously. It also features a compact keyboard with soft-touch keys. This feature aids in high-speed counting and reduces fatigue.

Additional features include:

  • Counting and total displays have three digits
  • Hermetically sealed switches prevent count anomalies resulting from powdered gloves or other contaminants
  • Comes with a separate key assignment overlay; additional overlays are available
  • Alarm actuates every 100 counts with optional 100-count lockout
  • Calculates percent and absolute WBC values with count correction
  • Operating temperature range: 0° to 49°C (32° to 120°F)

Sales/Distributors

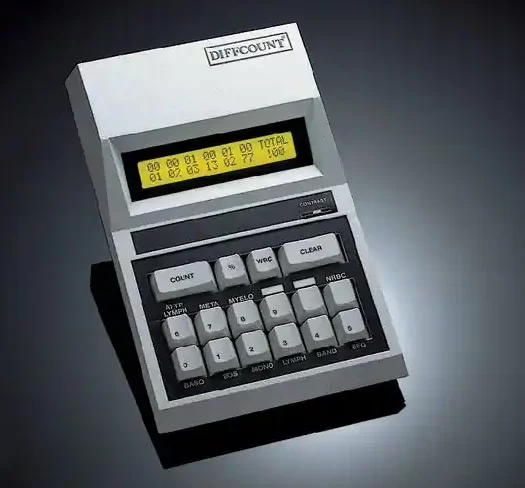

DIFFCOUNT III Model 10-312

DIFFCOUNT III Model 10-312P  (with Printer I/O Port) *

12-Channel Cell counter


DIFFCOUNT III 12-Channel digital differential cell counter is designed for the clinical laboratory and features 12 counting keys, plus PERCENT, COUNT, WBC, and CLEAR keys. DIFFCOUNT III displays information on a bright, backlit LCD display which allows the user to view all channels simultaneously. It also features a compact keyboard with ‘soft-touch’ keys. This feature aids in high-speed counting and reduces fatigue.

Additional features include:

  • Each counting channel displays two digits (the last two digits of the count)
  • Total channel displays three digits
  • Calculation of percent of total and calculation of absolute WBC counts (on 12-channel models only)
  • Displays all channels simultaneously with large digits on bright backlit LCD display
  • Hermetically sealed switches prevent count anomalies resulting from powdered gloves or other contaminants
  • Compact keyboard with soft-touch keys facilitates increased counting speed
  • Comes with a separate key assignment overlay; additional overlays are available
  • Alarm actuates every 100 counts with optional 100-count lockout
  • Calculates percent and absolute WBC values with count correction
  • Operating temperature range: 0° to 49°C (32° to 120°F)

* Model 10-312P includes a RS-232 printer port.

Sales/Distributors

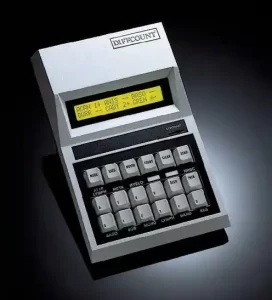

DIFFCOUNT III Model 10-329

Comp-U-Diff Workstation


A 12-channel differential counter and RBC morphology data entry workstation that provides efficient, direct computer entry of differential counts, RBC morphology, comments, specimen and technician identification.  Other features include hermetically sealed switches, high-speed search, hemogram recall, count correction, non-total channels, percent calculation and alarm actuation.  DIFFCOUNT III displays information on a bright, backlit LCD display which allows the user to view all channels simultaneously. It also features a compact keyboard with soft-touch keys. This feature aids in high-speed counting and reduces fatigue.

Additional features include:

  • Hemogram recall enables user to query host for hemogram information
  • RBC Morphology entry provided by direct entry of up to 24 morphology titles such as POIK, HYPO, etc.
  • Stores up to 127 specimens for later editing and for selective or batch transmission
  • Provides for entry of date, specimen identification
  • Provides for entry of up to 4 three-digit comments
  • Allows for count correction and percent calculation capabilities.
  • Alarm actuated for every 100 counts (optional)
  • Compact unit with small footprint to sit in close proximity to microscope
  • Data formatted for easy programming
  • Data can be formatted to output to an information system computer or printer

Technical Sheet

Sales/Distributors



All DIFFCOUNT III products come standard with 110V power adaptors for labs in the US, but can also be ordered with 220 V power adaptors with UK or European plug configurations to best accommodate users wherever they may be.

All DIFFCOUNT III products offer 1 Year Warranty for Parts and Labor under normal laboratory operating conditions.
